Altex Engineering Ltd, based in Calne, is a specialist in precision engineering and sheet metal fabrications. With over 40 years of experience, Altex delivers design, machining, and fabrication services to customers across multiple sectors, combining expert craftsmanship with state-of-the-art technology.

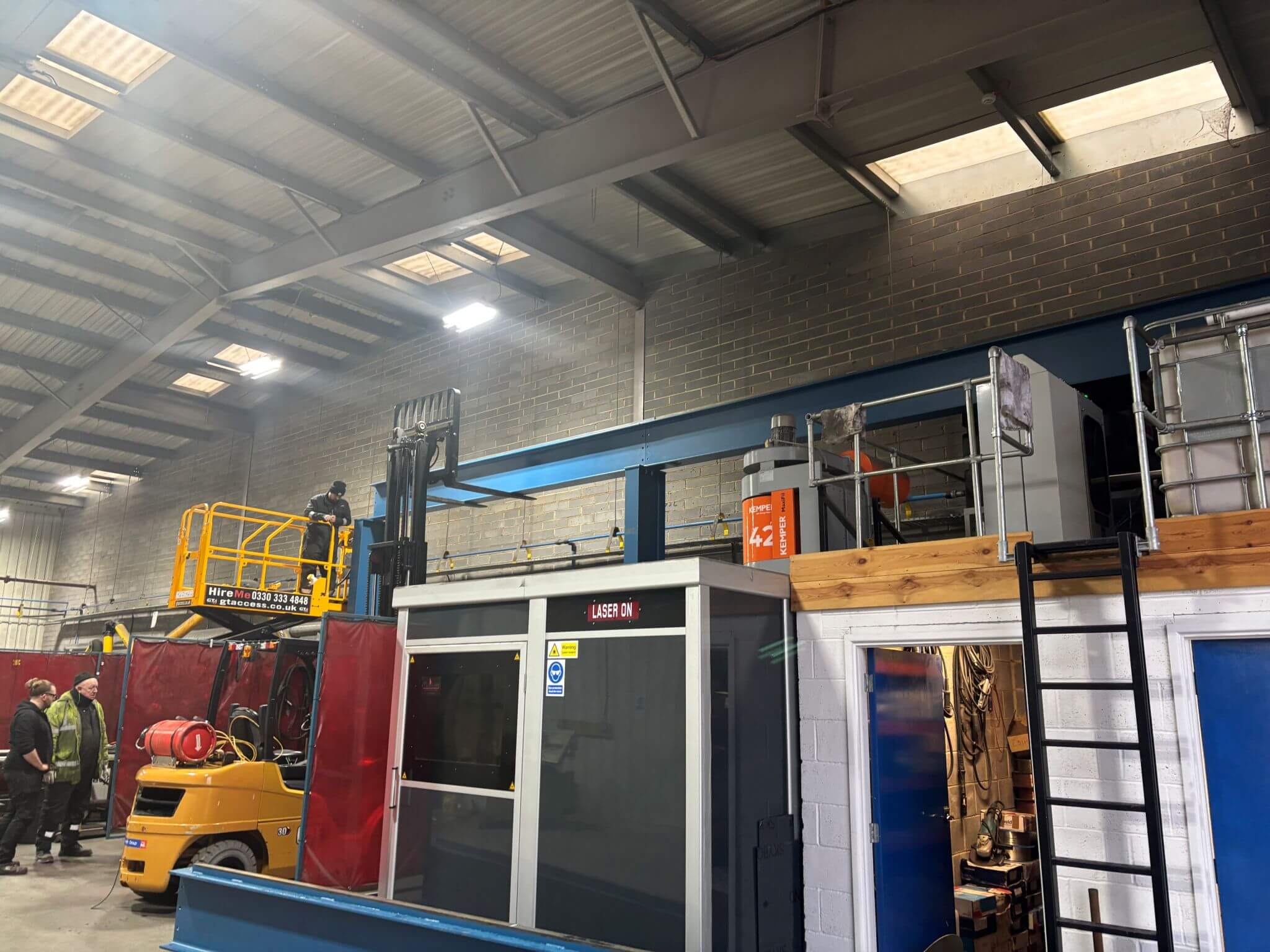

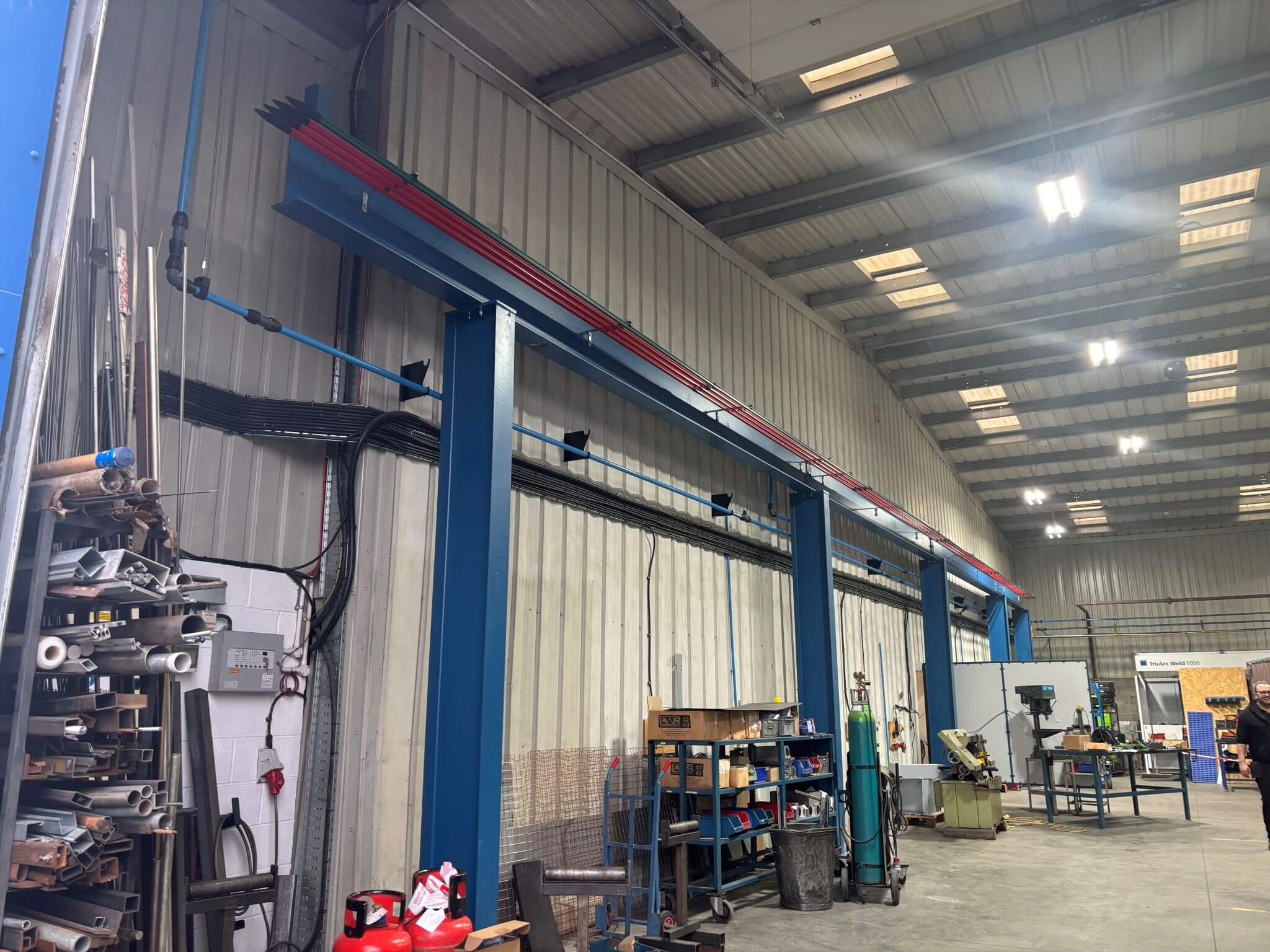

Granada Cranes was commissioned to design, manufacture, and install a new 6,000kg single girder overhead travelling crane at Altex’s facility. The project aimed to replace older lifting equipment with a modern, reliable, and efficient solution that could support precision engineering operations in a clean indoor environment.
The new 6-tonne single girder crane provides Altex with a robust, efficient, and future-proof lifting solution. Thanks to frequency inverter drives, load handling is now smoother and safer, minimising wear on mechanical components and extending the lifespan of the crane. The addition of condition monitoring gives operators greater visibility over performance and potential issues, supporting a proactive approach to maintenance.
For a precision engineering company like Altex, reliable lifting is essential to maintaining production efficiency and meeting strict quality standards. This installation shows how Granada Cranes combines engineering expertise, trusted SWF components, and modern safety systems to deliver solutions tailored to each client’s environment and lifting needs.
Safe Working Load (SWL): 6,000kg
Span: 9,000mm (approx., confirmed by full survey)
Height of Lift: 5,000mm actual (7,000mm max)
Construction: Single steel box girder, fabricated in the UK by coded welders
Hoist: SWF Low Headroom Electric Wire Rope Hoist (EWH)
Control Method: Pendant control, moveable along the bridge main beam
Classification & Duty:
Crane Group: FEM A6
Hoist Group: ISO M5
Hoist Travelling: ISO M5
Crane Travelling: ISO M5
Speeds:
Hoist: 4.0 m/min (fast), 0.70 m/min (slow)
Cross Travel: 20.0 m/min (fast), 5.0 m/min (slow, inverter-controlled)
Long Travel: 32.0 m/min (fast), 8.0 m/min (slow, inverter-controlled)
Electrical Supply: 400/415V, 3-phase, 50Hz
Additional Features:
Frequency inverter drives for sway-free load travel
Smooth acceleration and braking for reduced component wear
Condition monitoring for preventative maintenance
Thermal overload protection across all motions
Slow-down and stop limits on bridge and gantry
From one-off projects to complete factory installations, Granada Cranes delivers overhead crane systems that are fit for purpose, safe, and built to last. Our independence means we’re not tied to one manufacturer — giving us the flexibility to design the right system for your operation, not just a catalogue option.
