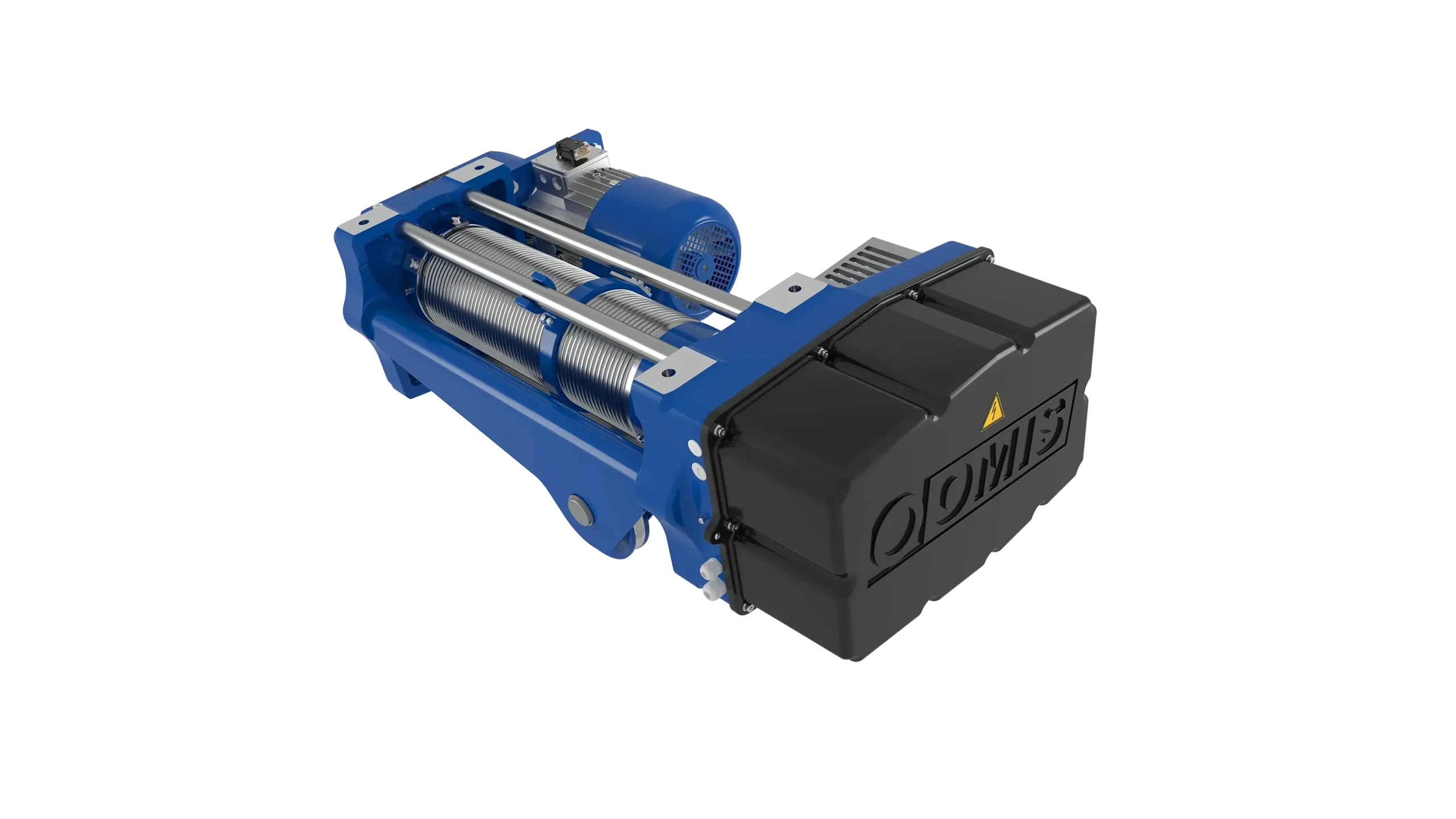

OMIS H-Series Electric Rope Hoists
Need help selecting the right hoist? Our engineers are ready to help with selection, design, and install — whether it’s for a new system or a retrofit.
Granada Cranes proudly supplies and supports the OMIS Electric Rope Hoist – a robust, reliable lifting solution designed for demanding industrial applications. Engineered for high specification requirements in sectors like manufacturing, automotive, energy, and steel, this hoist delivers powerful performance, long life, and superior safety.
Built with precision in Italy, the OMIS hoist combines rugged construction with smooth operation. It’s available in a range of load capacities (typically 1 – 80 tonnes) and drum configurations to suit different lifting needs – from standard hook lifts to multi-module tandem arrangements. Its design emphasises ease of maintenance and flexibility, making it an excellent choice for both new installations and upgrades of existing cranes.
| Feature | Benefit |
|---|---|
| High Load Capacity | Handles heavy-duty lifting tasks—ideal for steel fabrication & energy sectors. |
| Modular Drum System | Offers single, double, or multi-drum configurations to match your load requirements. |
| Precision-Controlled Operation | Dual-speed or inverter options ensure smooth, accurate lifting and positioning. |
| Durable Build Quality | All-steel body, gearboxes, and wire rope drums designed for long life in tough industrial environments. |
| Integrated Safety Systems | Equipped with load limiters, mechanical end-stops, and optional anti-collision protection for added operator safety. |
| Flexible Installation Options | Compact dimensions, retrofit-friendly design, and adaptable suspensions make this hoist ideal for new builds or modernisation projects. |
| Ease of Maintenance | Accessible components and modular design mean faster service turnaround and reduced downtime. |
| Custom Control Solutions | Supports pendant, radio, or cabin control systems; can link into modern crane automation platforms. |
| Compliance-Ready | Fully meets UK/EU safety standards (LOLER, PUWER, EN 15011) and is suitable for use in tandem lifts or demanding duty cycles. |
At Granada Cranes, we pride ourselves on fast and efficient turnaround times.
Chain hoists from trusted brands like Stahl and Liftket are typically available within 24 hours, thanks to UK-based stock.
For wire rope hoists, including SWF and Omis, standard models are usually delivered in 6 to 8 weeks, with longer lead times for bespoke configurations.
Full crane systems currently follow a standard turnaround of approximately 12 weeks from order to installation.
When it comes to spares, we can often source key components within 24 hours, although older or specialist parts may take longer depending on availability.
| OMIS Electric Rope Hoist – Technical Overview | |
|---|---|
| Safe Working Load | 1,000 kg to 80,000 kg (1 – 80 tonnes) |
| Hoisting Speeds | Dual-speed or inverter-controlled (up to 12 m/min depending on model) |
| Cross Travel Speeds | 5–40 m/min (variable depending on duty and control system) |
| Drum Configuration | Single, double, or multi-drum (centre or side-mounted) |
| Duty Classification | FEM 2m / ISO M5 or higher (heavy-duty industrial use) |
| Lift Height | Standard up to 60 m; bespoke lift heights available |
| Hoist Motor | Squirrel-cage motor with integrated brake; insulation class F |
| Controls | Pendant, radio remote, or integrated cabin control |
| Power Supply | 380–415V / 50Hz (other voltages on request) |
| Gearbox Type | Helical, oil-lubricated with hardened gears |
| Safety Features | Load limiters, slack rope detection, thermal protection, overload cut-off, upper/lower travel limits |
| Mounting Options | Monorail, double girder trolley, fixed suspension |
| Compliance | LOLER, PUWER, BS EN 15011, CE marked |
- We’re the UK’s largest independent crane company — not tied to any brand.
- Access to SWF, Liftket, Stahl, Street, Konecranes and more.
- 24-hour delivery available for many hoist models.
- Specialists in both new installations and crane modernisation.
- Nationwide coverage with full LOLER compliance and service support.
Promotional Video
Your Crane Modernisation Partner
Looking to upgrade your current crane setup? The OMIS H-Series Electric Rope Hoist is perfect for:
- Replacing outdated hoists on large fixed cranes
- Integrating into existing gantry or bridge crane structures
- Bringing legacy systems in line with modern safety and performance standards
At Granada Cranes, we routinely integrate OMIS H-Series Electric Rope Hoists units into modernisation projects, offering:
- <24-hour access to parts and spares
- Full installation, commissioning, and testing
- Expert support across SWF, Konecranes, Street Crane, OMIS, Abus, and more
