SWF ATHLO belt
Need help selecting the right hoist? Our engineers are ready to help with selection, design, and install — whether it’s for a new system or a retrofit.

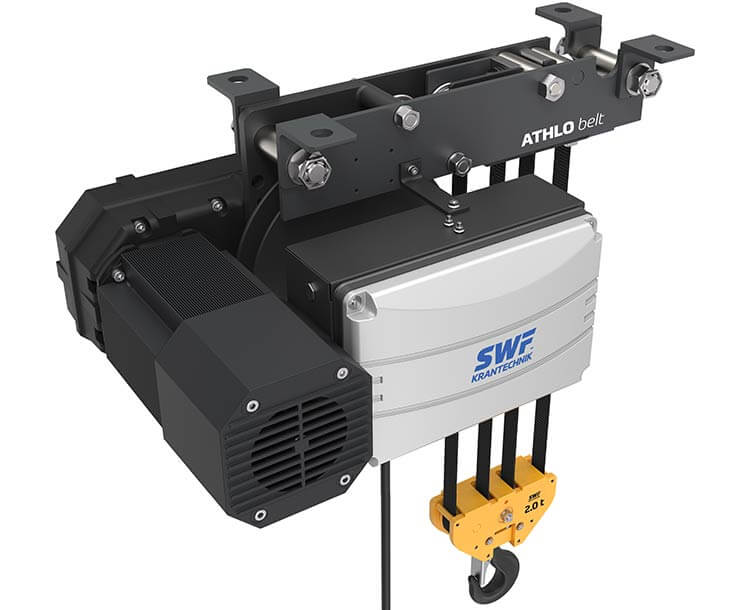

The SWF ATHLO Belt hoist is specially designed for environments where safety and cleanliness are essential — making it ideal for industries such as food processing, pharmaceuticals, and chemical manufacturing. Built for loads between 500 kg and 5,000 kg, it delivers reliable lifting with a focus on hygiene and durability.
Its compact design ensures minimal C-dimensions, allowing for optimal space utilisation in tight or cleanroom environments. The high-performance hoisting belt resists a wide range of chemicals, solvents, and oils, making it a robust solution for demanding applications.
-
Clean and Safe: Ideal for cleanrooms, food, chemical, and pharmaceutical sectors.
-
Durable Belt: High-tenacity material resists acids, alkalis, solvents, and oils.
-
Low Headroom: Minimal C-dimensions allow for maximum workspace usage.
-
Overload & Overheat Protection: Standard safety features protect both hoist and structure.
-
Flexible Options: Available with manual, electric, or curved trolleys, and stainless steel components.
At Granada Cranes, we pride ourselves on fast and efficient turnaround times.
Chain hoists from trusted brands like Stahl and Liftket are typically available within 24 hours, thanks to UK-based stock.
For wire rope hoists, including SWF and Omis, standard models are usually delivered in 6 to 8 weeks, with longer lead times for bespoke configurations.
Full crane systems currently follow a standard turnaround of approximately 12 weeks from order to installation.
When it comes to spares, we can often source key components within 24 hours, although older or specialist parts may take longer depending on availability.
ATHLO Belt Size 2 | |
---|---|
Load Capacity | Up to 2,000 kg |
Fall Variants | 2-, 3-, or 4-fall |
Drive Type | Contactor-controlled |
Lifting Speed | Two speeds: 1 / 6 m/min |
Hoisting Belt | Resistant to chemicals and oils |
Protection Features | Overload & overheat protection |
Trolley Options | Manual, electric, or curved |
ATHLO Belt Size 5 | |
---|---|
Load Capacity | Up to 5,000 kg |
Fall Variants | 2×2 or 2×4 |
Drive Type | Contactor-controlled |
Lifting Speed | Two speeds: 1 / 6 m/min |
Hoisting Belt | High-tenacity, chemical-resistant |
Protection Features | Overload & overheat protection |
Trolley Options | Manual, electric, or fixed |
- We’re the UK’s largest independent crane company — not tied to any brand.
- Access to SWF, Liftket, Stahl, Street, Konecranes and more.
- 24-hour delivery available for many hoist models.
- Specialists in both new installations and crane modernisation.
- Nationwide coverage with full LOLER compliance and service support.
Promotional Video
Your Crane Modernisation Partner
Looking to upgrade your current crane setup? The SWF ATHLO Belt is perfect for:
-
Replacing outdated hoists on large fixed cranes
-
Integrating into existing gantry or bridge crane structures
-
Bringing legacy systems in line with modern safety and performance standards
At Granada Cranes, we routinely integrate SWF ATHLO Belt units into modernisation projects, offering:
-
<24-hour access to parts and spares
-
Full installation, commissioning, and testing
-
Expert support across SWF, Konecranes, Street, Abus, and more
