Introduction

At Granada Cranes, we pride ourselves on delivering bespoke lifting solutions tailored to meet the unique demands of our clients. Our recent project with Cosentino UK, a leading supplier in the construction and design sector, showcases our ability to design, manufacture, and install state-of-the-art crane systems. This project demonstrates why Granada Cranes is a trusted name in the industry.

Project Overview

Cosentino UK approached us with the need for cranes capable of handling heavy loads with precision and consistency across their facility. Following site visits to determine feasibility and requirements, we designed and built the following crane systems in our Granada Cranes factory before transporting and installing them on-site:

Technical Specification

The cranes were engineered to meet the specific operational demands of Cosentino UK’s facility. Here’s a detailed breakdown of the system:

Crane Features

  • Safe Working Load (SWL): 5000 kg
  • Span: Bay 1 – 25,000 mm; Bay 2 – 20,000 mm
  • Height Under Hook: 6000 mm
  • Construction: Box Girder
  • Classification: M5
  • Hoist Manufacture: SWF Wire Rope

Hoist Performance

  • Speeds: 8 / 1.3 metres per minute
  • Motor Power: 7.5 / 1.2 kW

Movement Systems

  • Cross Traverse Speed: Max 20 metres per minute (stepless dual speed)
  • Long Travel Speed: Max 40 metres per minute (stepless dual speed)
  • Control System: Radio Control with pendant backup

Additional Features

  • Travel indicator lamp and horn
  • Electronic overload protection
  • Enclosed busbar system for 3-phase + earth power supply
  • Cranes branded with Cosentino’s colours and logos

The Installation Process

  1. Site Visits and Feasibility Studies
    Our team conducted initial site visits to assess the facility’s layout, operational requirements, and feasibility of the installation. This step was crucial in ensuring the final design met Cosentino UK’s needs.
  2. Design and Manufacturing
    The cranes were built at Granada Cranes’ state-of-the-art factory, leveraging advanced engineering techniques to deliver high-performance systems.

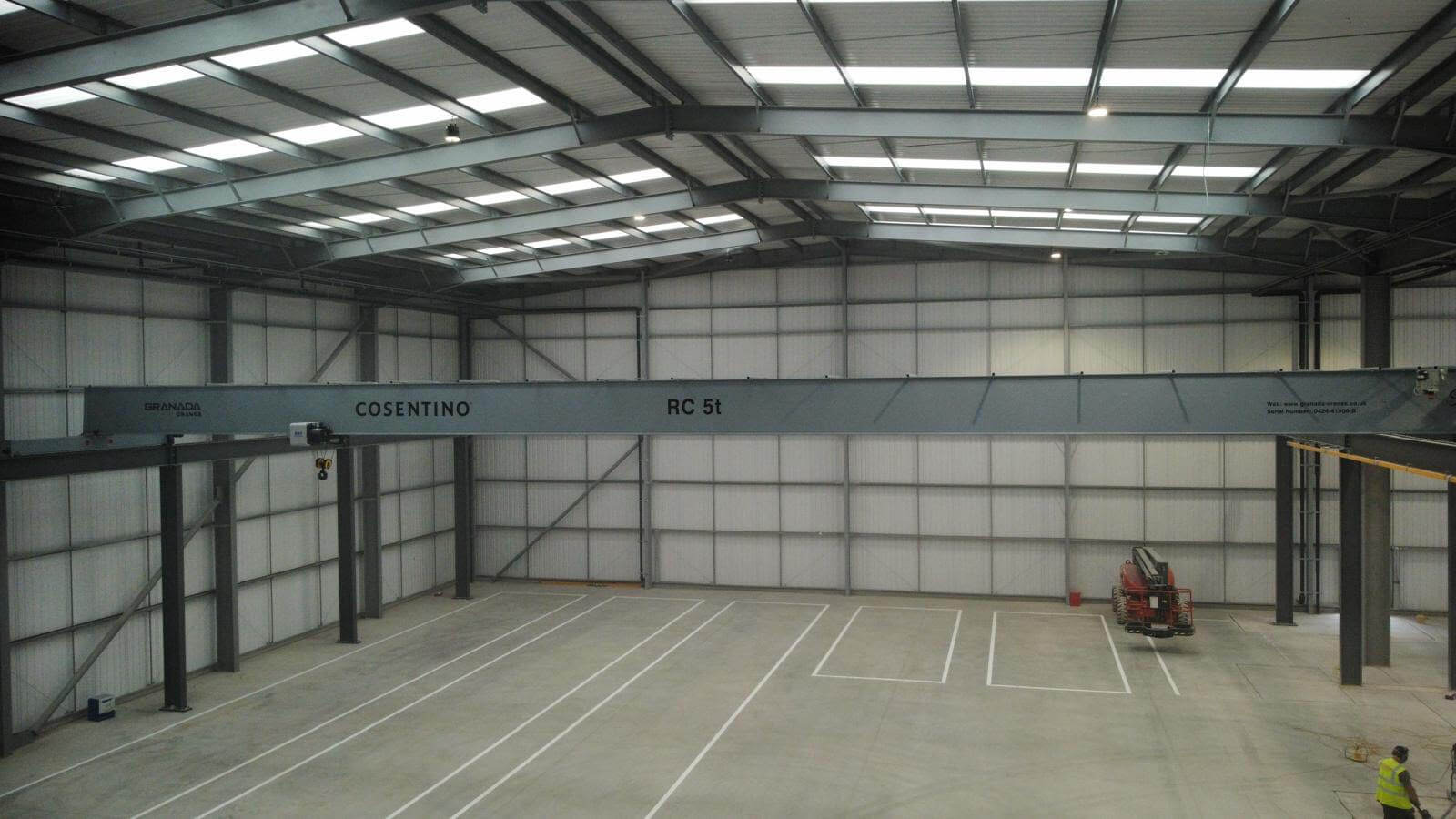

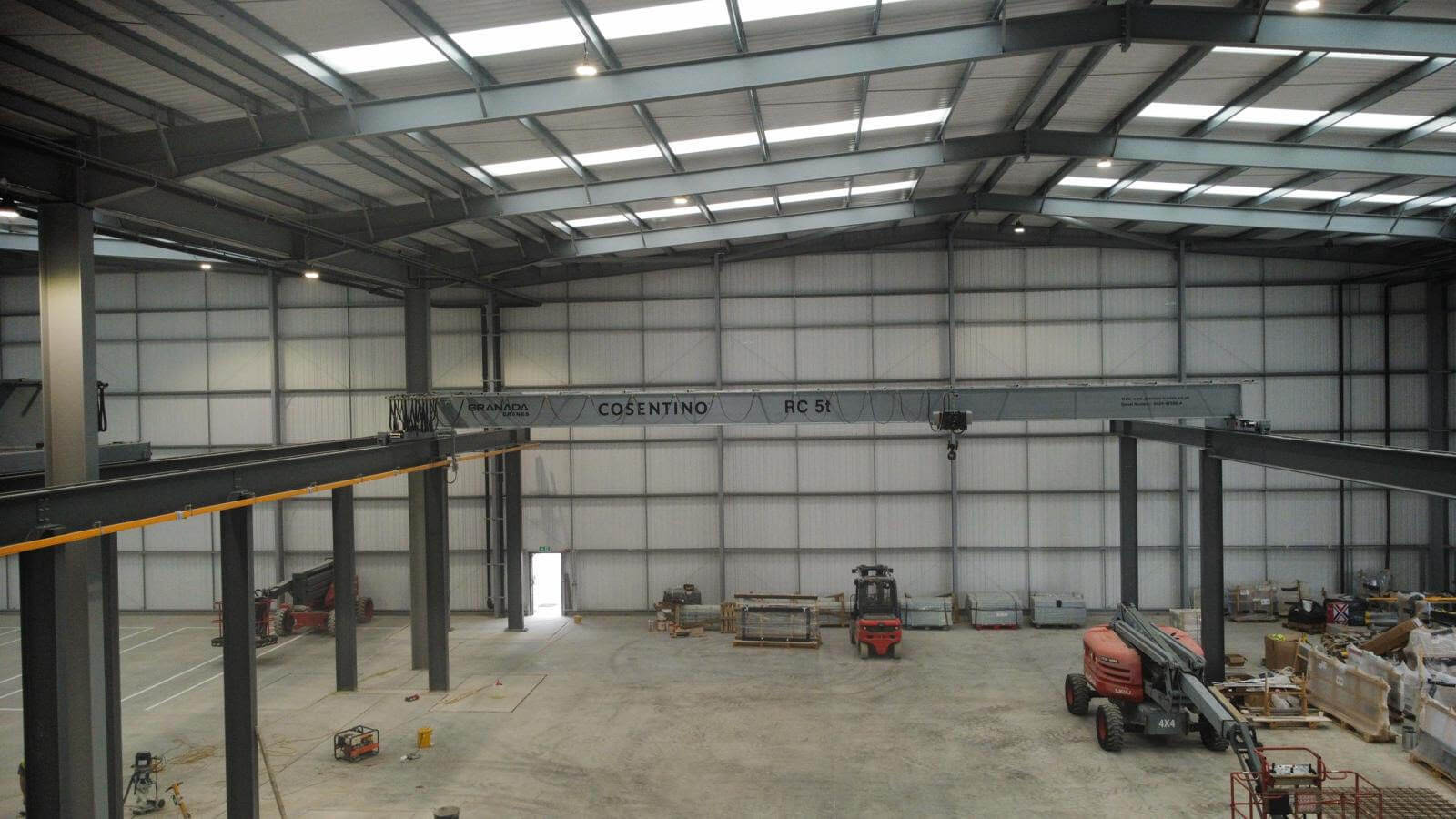

  3. Transportation and Installation
    Once completed, the cranes were transported to Cosentino’s facility. Our skilled technicians installed and commissioned the systems, ensuring precise alignment and optimal functionality.
  4. Training and Handover
    We provided comprehensive training for up to 4 Cosentino team members to ensure safe and efficient operation of the new crane systems.

Key Benefits

  • Customised Design: The cranes were tailored to meet Cosentino’s specific lifting requirements, enhancing productivity and workflow.
  • Increased Efficiency: High-performance features, such as dual-speed motors and advanced control systems, ensure smooth and precise operations.
  • Enhanced Safety: Features like electronic overload protection, travel indicators, and a radio control system prioritise operator safety.
  • Branded Aesthetics: Cranes branded in Cosentino’s colours and logos reinforce their corporate identity while maintaining functionality.

Why Granada Cranes?

This project highlights Granada Cranes’ commitment to excellence in every aspect of crane design, manufacturing, and installation. From initial consultation to post-installation training, we ensure our clients receive the highest quality solutions tailored to their operational needs.
