Low Headroom Crane Systems

Specialist Overhead Cranes Designed for Restricted Spaces

When overhead clearance is limited, standard crane designs simply won’t fit. That’s where our Low Headroom Crane Systems come in — engineered specifically for facilities with tight vertical constraints, mezzanines, low rooflines, or existing steelwork.

At Granada Cranes, we design, build, and install bespoke low headroom overhead cranes that maximise lifting height, improve workflow, and meet all UK safety standards. Whether you’re upgrading an existing crane or installing a new system into a height-restricted building, we’ll create a solution that works within your space — not against it.

Trusted by

Get Advice or a Quote

Get Expert Advice or a Quote

Specialist Installation: 5 Ton Overhead Gantry Crane Inside a Soundproof Cell

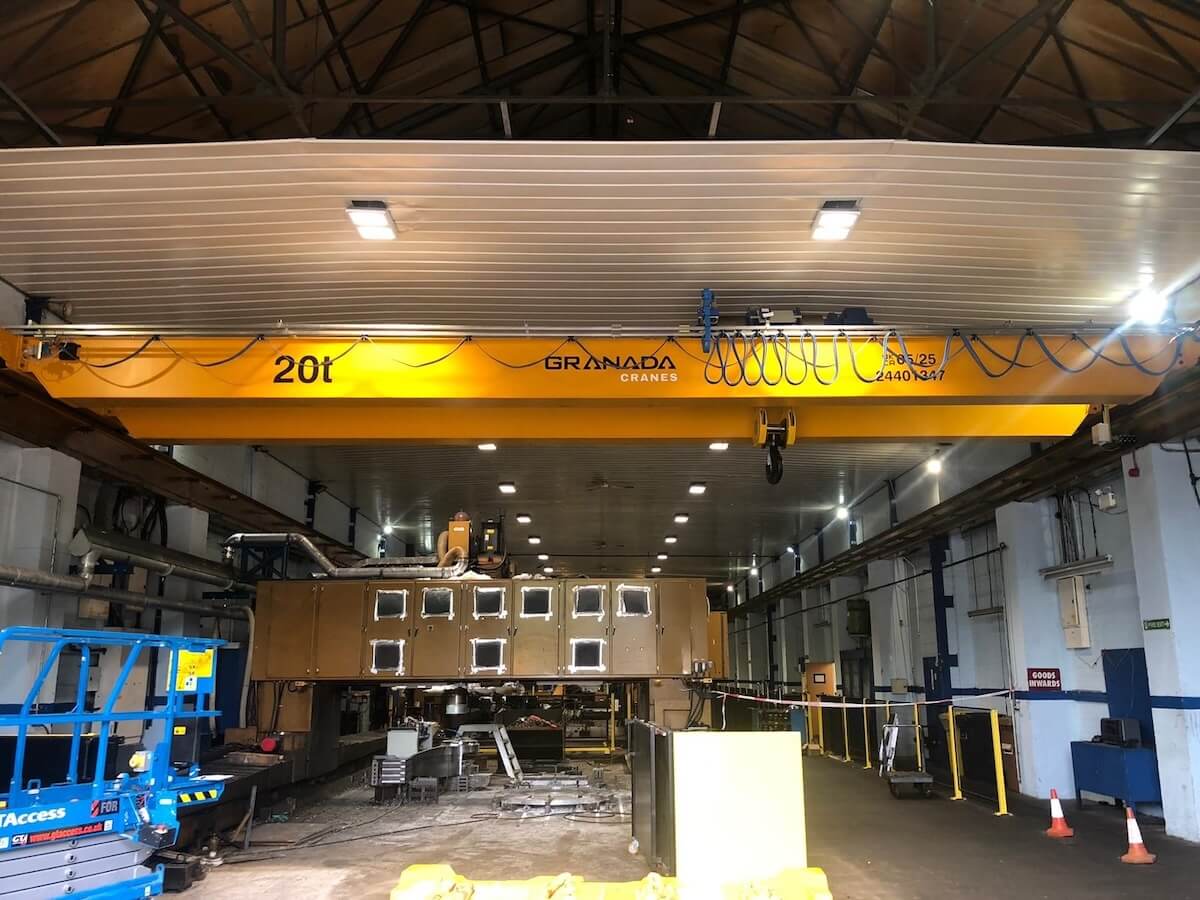

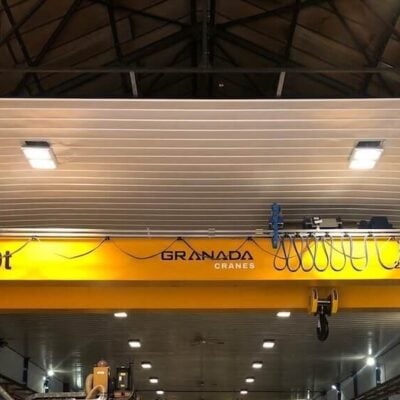

Pro Mill 20t OMIS Open Barrel Overhead Gantry Crane

Our Low Headroom Crane Services

Why Choose a Low Headroom Crane?

Low headroom cranes are designed to maximise hook height in tight environments where every millimetre counts. They use compact hoist configurations — such as short headroom chain hoists or low headroom wire rope hoists — to achieve excellent lifting performance with minimal structural clearance.

Perfect for:

Buildings with restricted internal height
Older facilities with structural limitations
Workshops with mezzanines or overhead ducts
Production lines requiring full hook travel within a confined area
Retrofit crane replacements where increasing building height isn’t possible

Our systems are commonly used in fabrication workshops, machining areas, automotive facilities, testing cells, and many specialist industrial environments — including fully enclosed soundproof cells where space is extremely limited.

Types of Low Headroom Crane Systems We Offer

1. Low Headroom Electric Chain Hoists

Ideal for 1–5 tonne lifting applications
Ultra-compact design with minimal hook loss
Perfect for workshops, maintenance bays, and small production areas

2. Low Headroom Wire Rope Hoists

For heavier lifting up to 20 tonnes+
Cross-mounted or low-profile hoist arrangement
Greater lifting speed and duty rating

3. Low Headroom Single Girder Cranes

Optimised trolley and hoist arrangement for reduced height
Excellent for long production bays with limited clearance

4. Low Headroom Monorail Systems

Perfect for transporting loads along a single path
Zero wasted headroom thanks to low-profile hoist trolleys

15 Ton Overhead Gantry Crane - TATA Steel

Trusted Components From Leading Manufacturers

As the UK’s largest independent crane supplier, we select the best low headroom hoists and crane components from leading global brands:

SWF Krantechnik – Low headroom NOVA & Chainster hoists
OMIS – Low-profile wire rope hoists and crane kits
Stahl – Short headroom electric chain hoists
Liftket – Compact chain hoists for restricted spaces

You get complete flexibility — the right equipment for your space, load type, and duty rating.

Get a Quote or Expert Advice

Looking for a Low Headroom Crane System?

Our team are here to help

Low Headroom Crane Specs & Use Cases

In many cases, a standard overhead crane simply won’t fit. The answer is specialist design. Because we manufacture and design cranes in-house, we’re able to engineer systems specifically for small vertical space.

Typical Low Headroom Crane Specs
Lifting Capacity	500kg – 20,000kg (custom options available)
Headroom Requirement	As low as 350mm depending on hoist model
Height Under Hook	Bespoke to your facility – maximised for tight spaces
Hoist Type	Low headroom chain or wire rope hoist
Crane Types	Single girder, monorail, workstation crane, or freestanding
Controls	Radio remote or pendant
Compliance	LOLER, PUWER, BS EN 15011

Industry	Use Case
Metal Fabrication	Handling sheet metal, welded frames, and tooling in low-clearance workshops.
Automotive	Engine and gearbox handling where roof height is restricted.
Aerospace	Precise lifting of components inside test cells or assembly booths.
Manufacturing	Production lines with suspended services or mezzanine interference.
Maintenance Facilities	Lifting pumps, motors, and machinery in compact service bays.

Experts in Low Headroom Installations

Why Choose Granada Cranes

We regularly install cranes in extremely restricted environments — including soundproof cells, tight mezzanine gaps, and older buildings with awkward steelwork layouts.

Full Turnkey Project Delivery

✔ Site survey & headroom analysis
✔ Full CAD design & structural calculations
✔ Fabrication, installation & load testing
✔ Operator training & handover

Complete Servicing & Support

✔ LOLER inspections
✔ Breakdown & repairs
✔ Crane modernisation upgrades
✔ Hoist replacements
✔ 24/7 emergency support (UK-wide)

As the UK’s largest independent crane supplier, we’re not tied to any single manufacturer. That means we can source the best components from trusted brands like SWF, OMIS, Stahl, Liftket, and more — ensuring you get the most suitable solution for your project, not just what’s on our shelf.

Have a Project?
Choose Granada Cranes

If you’re working in a space where clearance is limited, we’ll design a system that gives you the maximum possible hook height while maintaining full safety and efficiency.

Book a site survey or request a quote today.
