Gantry Steelwork

Precision-engineered steelwork for overhead cranes

At Granada Cranes, we design, fabricate, and install complete gantry steelwork and crane runway systems for Overhead Gantry Cranes in industries such as workshops, warehouses, factories, and heavy-industrial environments. Whether you need a brand-new crane installation, a runway extension, or a refurbishment of worn rails, we handle the entire process in-house.

Trusted by

Get Advice or a Quote
Get Expert Advice or a Quote

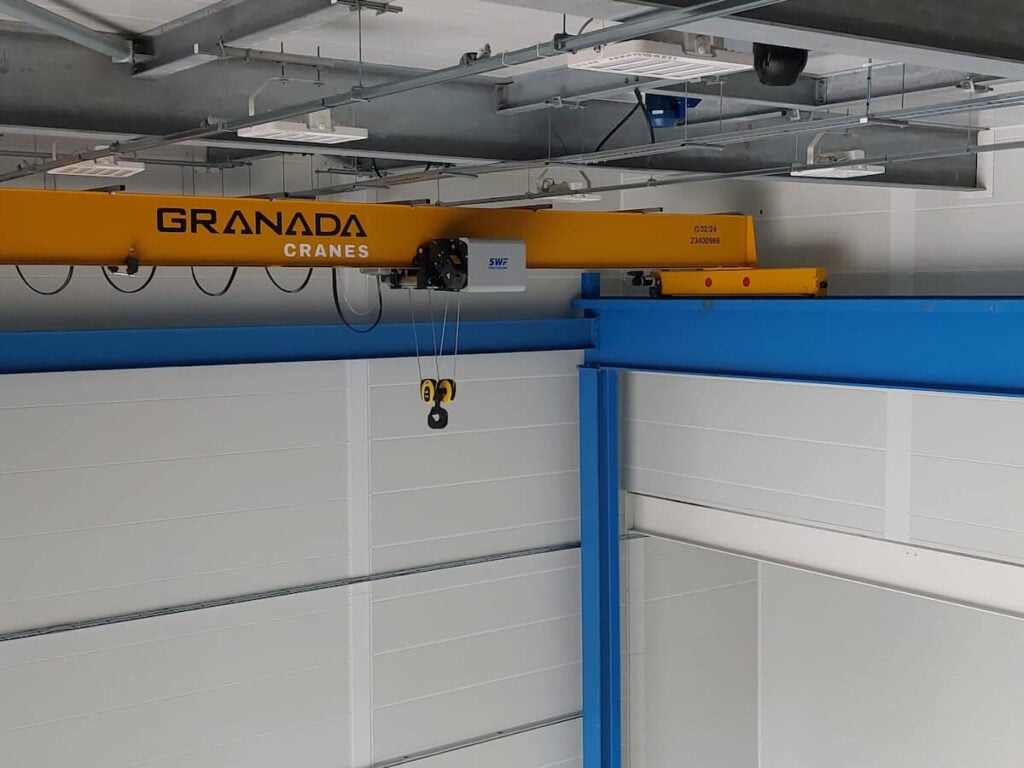

Specialist Installation: 5 Ton Overhead Gantry Crane Inside a Soundproof Cell
Specialist Installation: 5 Ton Overhead Gantry Crane Inside a Soundproof Cell
WEC 15t Single Girder Overhead Crane Installation
WEC 15t Single Girder Overhead Crane Installation

Our Gantry Steelwork Services

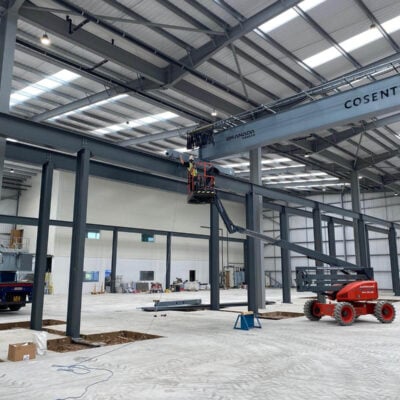

5 Ton Crane Installation - Cosentino

New Gantry Steelwork Installations

  • Purpose-built steelwork for overhead cranes
  • Free-standing systems (no reliance on building columns)
  • Indoor and outdoor applications
  • Suitable for concrete, steel, and multi-bay layouts

This is ideal for facilities where:

  • The existing building has no structural support for crane runways
  • The infrastructure is old or unsuitable
  • Production lines need reconfiguring without major building work

Crane Runway Rail Installation

We install precision-aligned crane runway rails for smooth, safe long-travel movement, using:

  • Steel runway beams
  • Fall-arrest rails and access walkways
  • Precision rail alignment technology
  • High-strength rail clips and bolts
  • Grouting and bedding for long-term durability
Overhead Gantry Crane

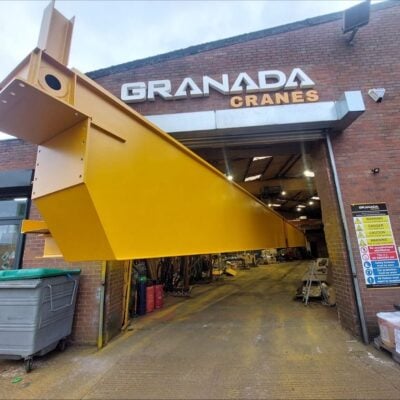

15 Ton Overhead Gantry Crane - TATA Steel

Runway Refurbishment & Realignment

Over time, crane runways can suffer:

  • Rail wear
  • Concrete deterioration
  • Beam distortion
  • Alignment drift
  • Corrosion and bolt fatigue

We provide:

  • Rail replacement or machining
  • Structural repairs and reinforcement
  • New conductor systems
  • Realignment to restore smooth crane travel
  • Load testing & certification
View Crane Modernisation
Get a Quote or Expert Advice
Looking for a Gantry Steelworks?
Our team are here to help
Contact Us

Gantry Steelwork Use Cases

From high-precision workshop environments to heavy-duty industrial bays, our runway systems are engineered for stability, long service life and seamless crane movement.
Crane Type Typical Capacities Where It’s Used
Single Girder Overhead Cranes 1–20 tonnes Workshops, fabrication, warehousing
Double Girder Overhead Cranes 10–50+ tonnes Heavy manufacturing, machining works, steel handling
Monorail Cranes 500kg–10 tonnes Production lines, repetitive handling
Jib Cranes & Workstation Cranes 125kg–2 tonnes Assembly, maintenance bays, CNC loading
Gantry & Semi-Gantry Cranes 2–25 tonnes Indoor/outdoor movement where runways aren’t possible
Crane Type & Capacity Where It’s Used
Single Girder Overhead Cranes
Typical: 1–20 tonnes		 Workshops, fabrication, warehousing
Double Girder Overhead Cranes
Typical: 10–50+ tonnes		 Heavy manufacturing, large machining, steel handling
Monorail Cranes
Typical: 500kg–10 tonnes		 Production lines, repetitive point-to-point handling
Jib & Workstation Cranes
Typical: 125kg–2 tonnes		 Assembly cells, maintenance bays, CNC loading
Gantry & Semi-Gantry Cranes
Typical: 2–25 tonnes		 Indoor/outdoor movement where runways aren’t possible
Precision-engineered steelwork for overhead cranes

Industries We Support

Steel & fabrication workshops
CNC machining and heavy engineering
Warehousing & logistics
Automotive & aerospace
Foundries and casting
Renewable energy production
Construction and precast yards
Local authority and MOD workshops

From small workshops needing a 1–3 tonne system to heavy-industrial 25–50 tonne applications, our steelwork is engineered for long-term performance and compliance.

Colton Downshop Conductor Systems

Exclusive to Granada Cranes

The UK’s most respected crane power system — developed and supplied exclusively by Granada:

  • Oldest & safest finger-proof conductor systems
  • 40+ years of proven reliability
  • Often copied, never bettered
  • Full systems available within 2–3 days
  • Spare parts available same day

Variants available:

  • 100A & 200A galvanised steel
  • 250A copper bar

Installation details:

  • 4.5m bar sections
  • Support bracket every 2.25m (reduces cost vs. 4-bar systems)
  • Recommended spacing: 65mm (min 50mm)
  • End-feed or centre-feed configurations
  • Expansion joint at 90m
  • Support clips near centre allow natural thermal expansion

Used throughout the UK on:

  • Overhead cranes
  • Monorails
  • Travelling hoists
  • Production lines
Colton Busbar System
Colton Busbar System
Colton Busbar System
Colton Busbar System
Colton Busbar System
Colton Busbar System
Colton Busbar Crane Systems
Colton Busbar System

Already Have a Runway? We Can Upgrade It

We can modernise or extend existing steelwork:

Maintenance & Support

Every runway or gantry installation can be supported with:

As the UK’s largest independent crane supplier, we’re not tied to any single manufacturer. That means we can source the best components from trusted brands like SWF, OMIS, Stahl, Liftket, and more — ensuring you get the most suitable solution for your project, not just what’s on our shelf.

Have a Project?
Choose Granada Cranes

If you need structural steelwork for an overhead crane, whether that’s a brand-new runway system or conductor upgrades, we handle the entire process from design and fabrication to installation, certification, and ongoing maintenance. Get in touch today to arrange a quote or site survey.
