30+ Ton Overhead Gantry Cranes

Lifting Capacity: 30,000kg – 100,00kg

At Granada Cranes, we design and supply 30 ton overhead gantry cranes — and larger — for operations where serious strength, control, and durability are non-negotiable. Whether you’re upgrading your existing equipment or planning a new heavy-duty installation, our solutions are tailored to handle 30,000kg loads and beyond with precision and safety.

We work with some of the most trusted names in the industry — including SWF Krantechnik, OMIS, Stahl, and Liftket — to build bespoke crane systems designed around your specific workflow, layout, and lifting demands.

Trusted by

Get Expert Advice or a Quote

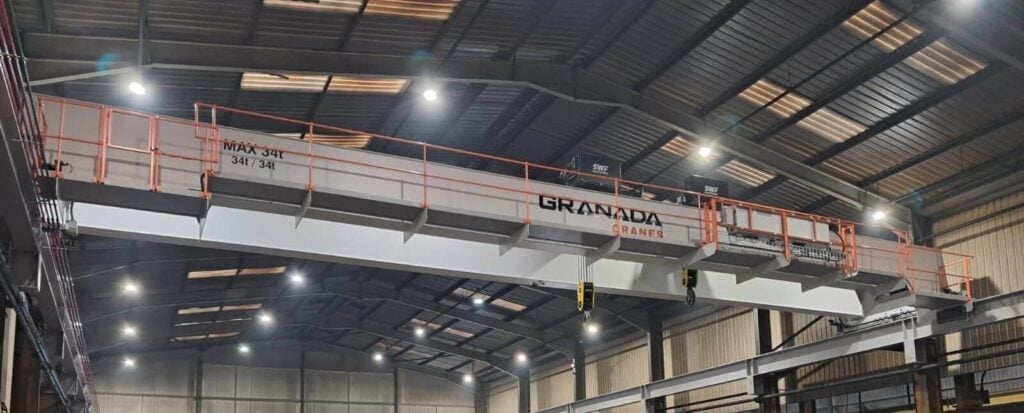

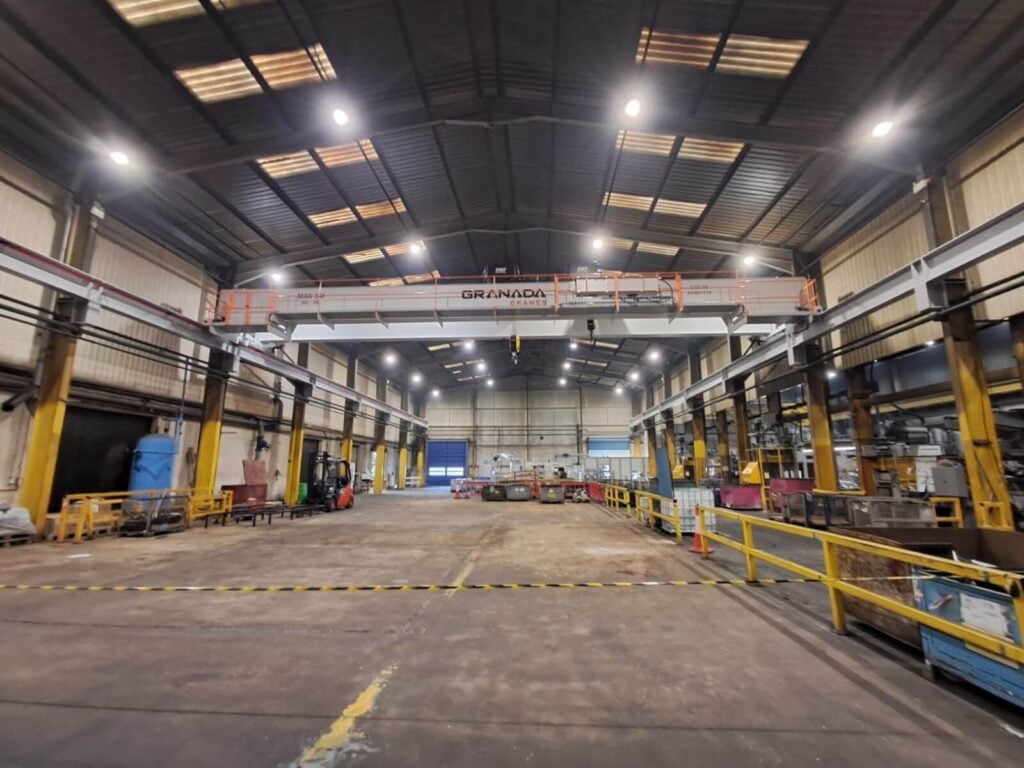

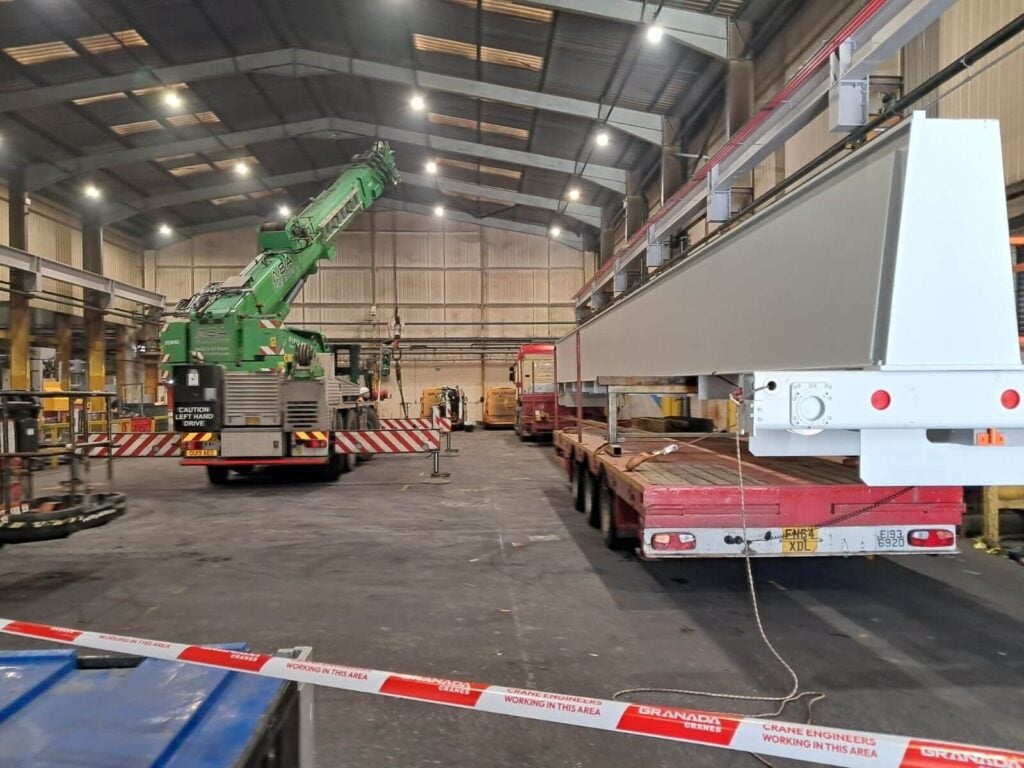

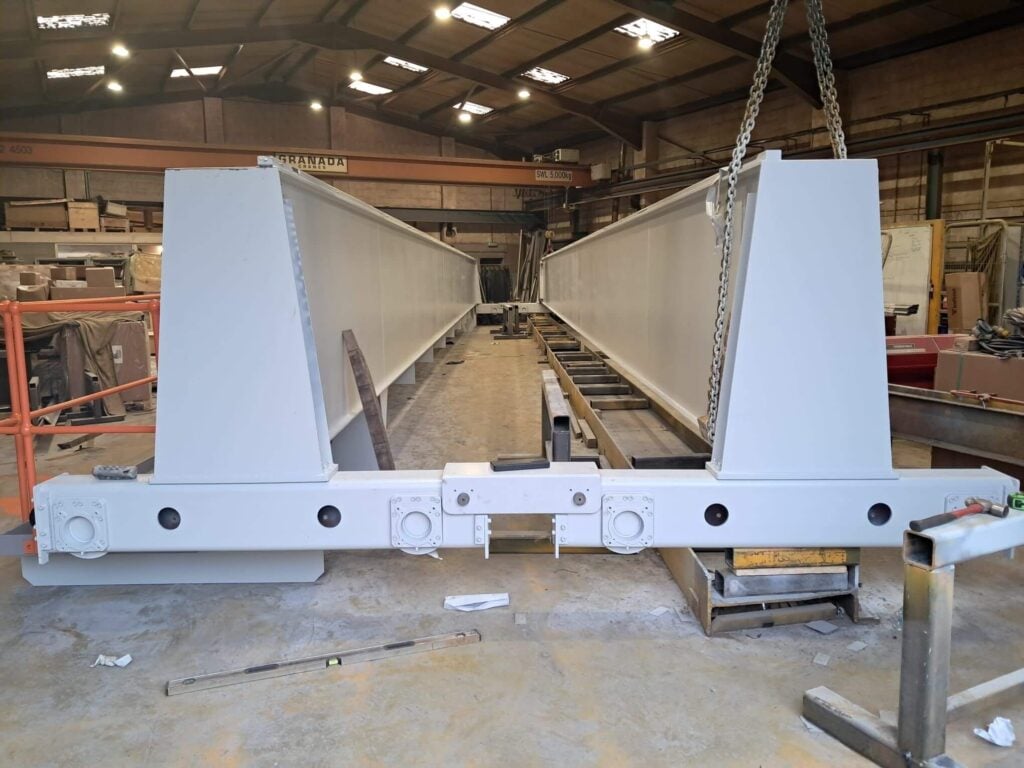

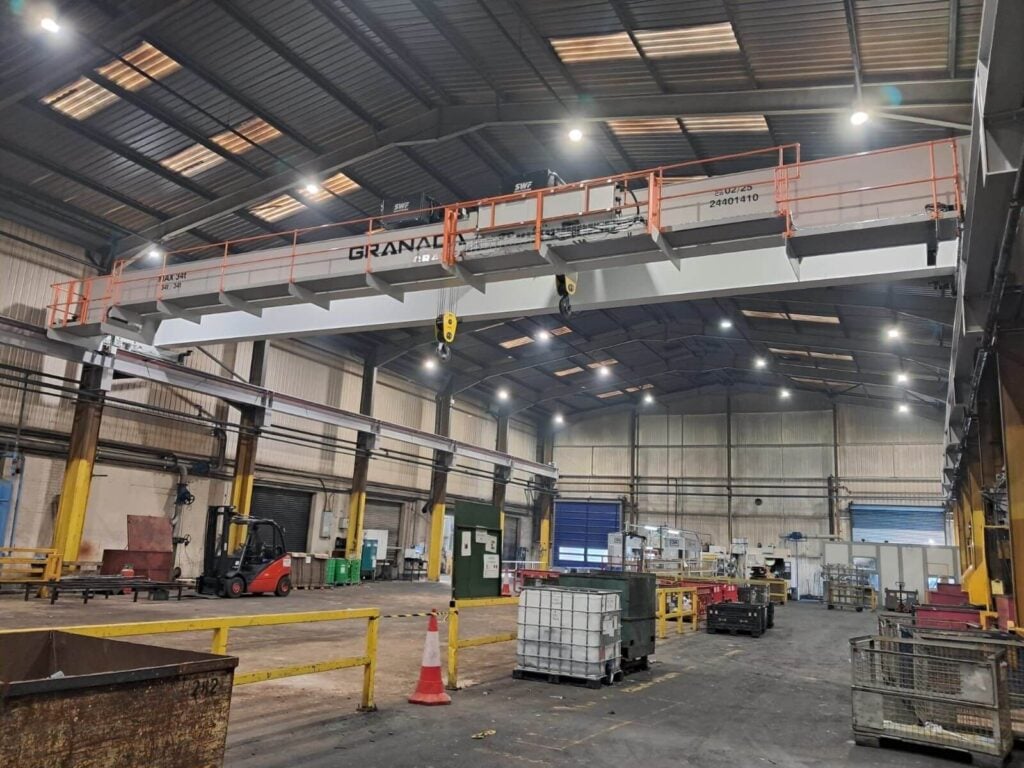

34T+34T Double Girder Crane System

Why Choose Granada Cranes

Full project management services

We Work with All Leading Brands

Complete Flexibility

As the UK’s largest independent crane supplier, we’re not tied to a single product line or brand. That means your 30-ton gantry crane can be built with the ideal combination of components — including hoists, drives, control systems and more — chosen specifically for your environment. Whether it’s SWF for hoisting or OMIS for bridge systems, we select what’s best for your operation — not what we’re trying to sell.

End-to-End

Project Delivery

We manage your crane project from start to finish. That includes system design, fabrication, installation, commissioning, and long-term support — all carried out by our experienced in-house team. Whether you need longer hook paths, dual hoist setups, or integration with complex existing infrastructure, we deliver turnkey solutions tailored to your business.

Built For

Compliance and Safety

All of our cranes — including our 30t and 40t models — are built to meet UK standards including LOLER, PUWER, and BS EN 15011. Optional extras like electronic overload protection, anti-collision sensors, travel alarms, and radio or pendant control are available to meet your safety and compliance needs. We can also include on-site operator training and documentation support.

UK-Wide Engineers

Nationwide Support

Our network of 60+ engineers ensures fast response times wherever you’re based in the UK. Many of our high-demand components — including wire rope hoists and motors — are available from local stock within 24 hours. Whether you need scheduled servicing or urgent repairs, we’re here to keep your heavy-duty crane running safely and efficiently.

Trusted by Leading Manufacturers

Trust Granada

From JCB Cranes and TATA Steel to Airbus and GE, we’ve designed and maintained high-capacity crane systems for some of the UK’s most demanding industries. Whether it’s a 30,000kg gantry crane for structural steel or a custom 40t system for energy infrastructure, we deliver precision-engineered solutions that stand up to the job — and the test of time.

Why use a 30 ton Overhead Crane?

Heavy Lifting Power You Can Count On

When your business depends on moving large machinery, steel structures, or production equipment weighing 30 tons or more, standard cranes won’t cut it. Our 30-ton overhead gantry cranes are built to deliver safe, reliable performance in high-demand environments — from fabrication shops and power stations to aerospace hangars and rail depots.

These cranes are ideal when you need:

Greater load capacity without compromising on control
Custom spans or longer hook travel
Advanced safety and monitoring systems
Seamless integration with your existing crane runway

We don’t do off-the-shelf systems — each crane is designed around your exact site and lifting requirements. Whether you’re dealing with 30,000kg+ loads or looking to future-proof your capacity, we’ve got you covered.

Get a Quote or Expert Advice

Looking for a 20 Ton Overhead Gantry Crane?

Our team are here to help

Built to your spec

As an independent supplier, we have the flexibility to build your 30-ton+ overhead gantry crane with the best components from leading global manufacturers. Need dual-speed hoisting? Multiple hoist configurations? A compact crane for a tight space? No problem — we’ll design it around your site and lifting patterns.

Optional Extras

Electronic overload protection
Travel alarms, limit switches, and visual beacons
Remote diagnostics and monitoring systems
Full crane maintenance and service plans
Radio or pendant control options

Typical Specifications Include:
Safe Working Load	30,000kg – 100,000kg+ (30–100+ tonnes)
Span Range	Custom spans up to 40m (subject to design)
Height Under Hook	5m–15m+ (fully bespoke based on application)
Hoist Type	Wire Rope Hoists (High-capacity, heavy-duty rated)
Travel Control	Radio remote, pendant, or operator cabin
Lifting Speeds	Variable-frequency drive (VFD), dual-speed, or inverter-controlled
Crane Configuration	Double girder, top-running with tandem hoist or multi-hoist capability
Structure Options	Freestanding gantry, semi-gantry, or integrated into existing runway
Safety Features	Electronic overload protection, anti-collision systems, alarms & limiters
Standards Compliance	LOLER, PUWER, BS EN 15011, ISO 9927

Typical Use Cases for a 30,000kg Overhead Gantry Crane

Industry	Use Case & Why 30+ Ton is Ideal
Heavy Steel Fabrication	Handles oversized girders, welded bridge sections, and structural assemblies — a 30-ton+ crane delivers the lift strength and precision needed for high-tonnage fabrication projects.
Heavy Manufacturing	Ideal for moving large-scale industrial machinery, moulds, or tooling that exceed standard capacities — ensures safe, efficient material handling for production-critical assets.
Power Generation & Utilities	Moves large-scale transformers, turbine housings, and wind turbine parts — enables precise, controlled lifting for delicate, high-value equipment.
Rail & Transport Engineering	Capable of lifting full rail vehicle frames, undercarriages, and powertrain assemblies — essential for locomotive builds, maintenance, and depot operations.
Infrastructure & Civil Engineering	Supports the handling of pre-cast bridge segments, tunnel lining segments, and road decks — vital for large infrastructure and construction projects.
Aerospace & Defence	Facilitates lifting of large airframes, fuselage sections, and specialist tooling rigs — provides the control and capacity required in aerospace production environments.
